BOS-G Pro
Higher yields / Safe & Reliable / Smart / User-friendly

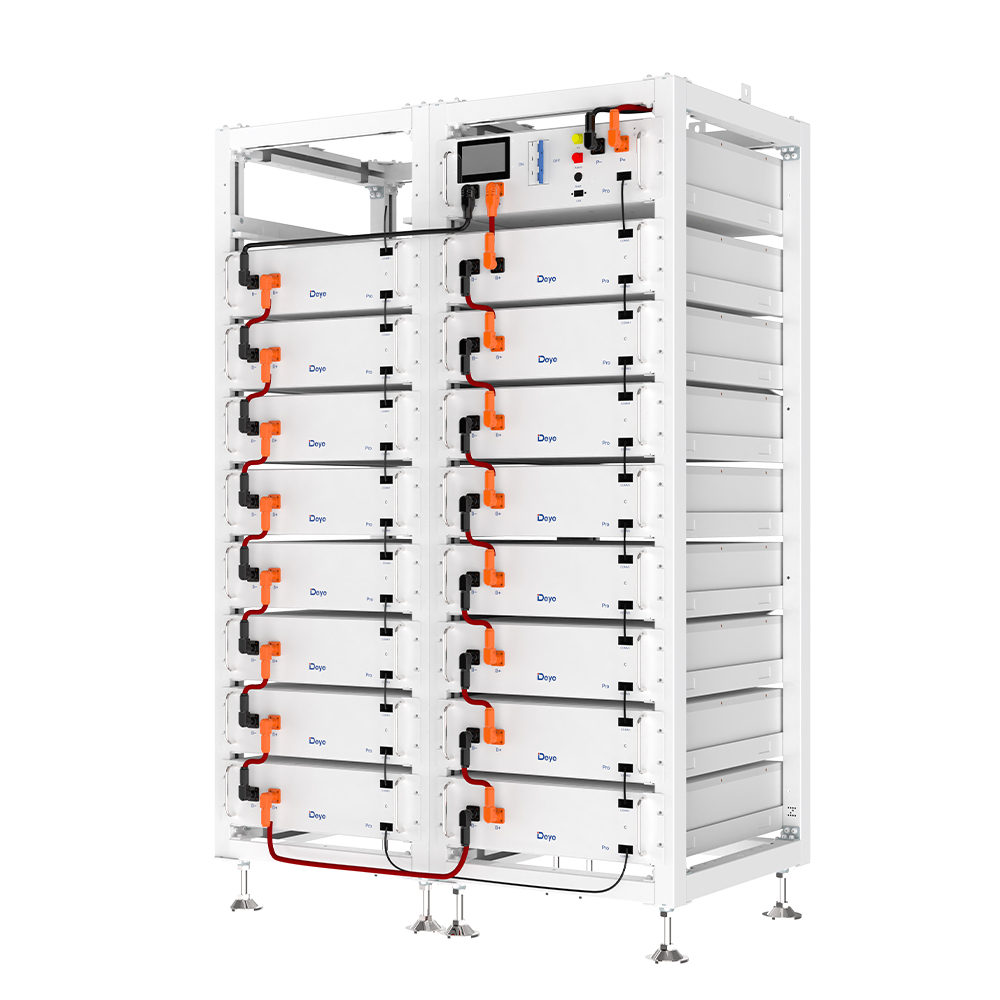

Deye BOS‑G Pro is a modular high-voltage LiFePO₄ battery storage system engineered for small‑scale commercial and industrial applications. It integrates safety-focused chemistry, intelligent BMS, and scalability to support hybrid solar inverters for efficient energy management.
Quick, rack-mount installation
Safe, long-lived LiFePO₄ chemistry
Advanced Battery Management System (BMS)
Environmentally friendly design
Modular scalability
Wide operating temperature
Long lifespan & warranty
Technical Data
| Model | BOS-G Pro | |||
|---|---|---|---|---|
| Main Parameter | ||||
| Cell Chemistry | LiFePO₄ | |||
| Module Energy (kWh) | 5.12 | |||
| Module Nominal Voltage (V) | 51.2 | |||
| Module Capacity (Ah) | 100 | |||
| Battery Module Qty in Series (Optional) | 5 (Min) | 8 | 17 (Max) | |
| System Nominal Voltage (V) | 256 | 409.6 | 870.4 | |
| System Operating Voltage (V) | 200~292 | 332.8~467.2 | 680~992.8 | |
| System Energy (kWh) | 25.6 | 40.96 | 87.04 | |
| System Usable Energy (kWh) | 23.04 | 36.86 | 78.33 | |
| Charge/Discharge Current (A) | Recommend | 50 | ||
| Nominal | 100 | |||
| Peak Discharge (2 mins, 25°C) | 125 | |||
| Working Temperature (°C) | Charge: 0~55 / Discharge: -20~55 | |||
| Status Indicator | Yellow: Battery High Voltage Power On Red: Battery System Alarm | |||
| Communication Port | CAN2.0 / RS485 | |||
| Humidity | 5%~85%RH | |||
| Altitude | ≤3500m | |||
| IP Rating of Enclosure | IP20 | |||
| Dimension (W/D/H, mm) | 589*590*1640 | 589*590*2240 | ||
| Weight Approximate (kg) | 258 | 434 | 628 | |
| Installation Location | Rack Mounting | |||
| Storage Temperature (°C) | 0~35 | |||
| Recommend Depth of Discharge | 90% | |||
| Cycle Life | 25±2°C, 0.5C/0.5C, EOL70% ≥6000 | |||
| Warranty | 10 years | |||
| Certification | CE/IEC62619 / VDE2510-50 / UN38.3 | |||
