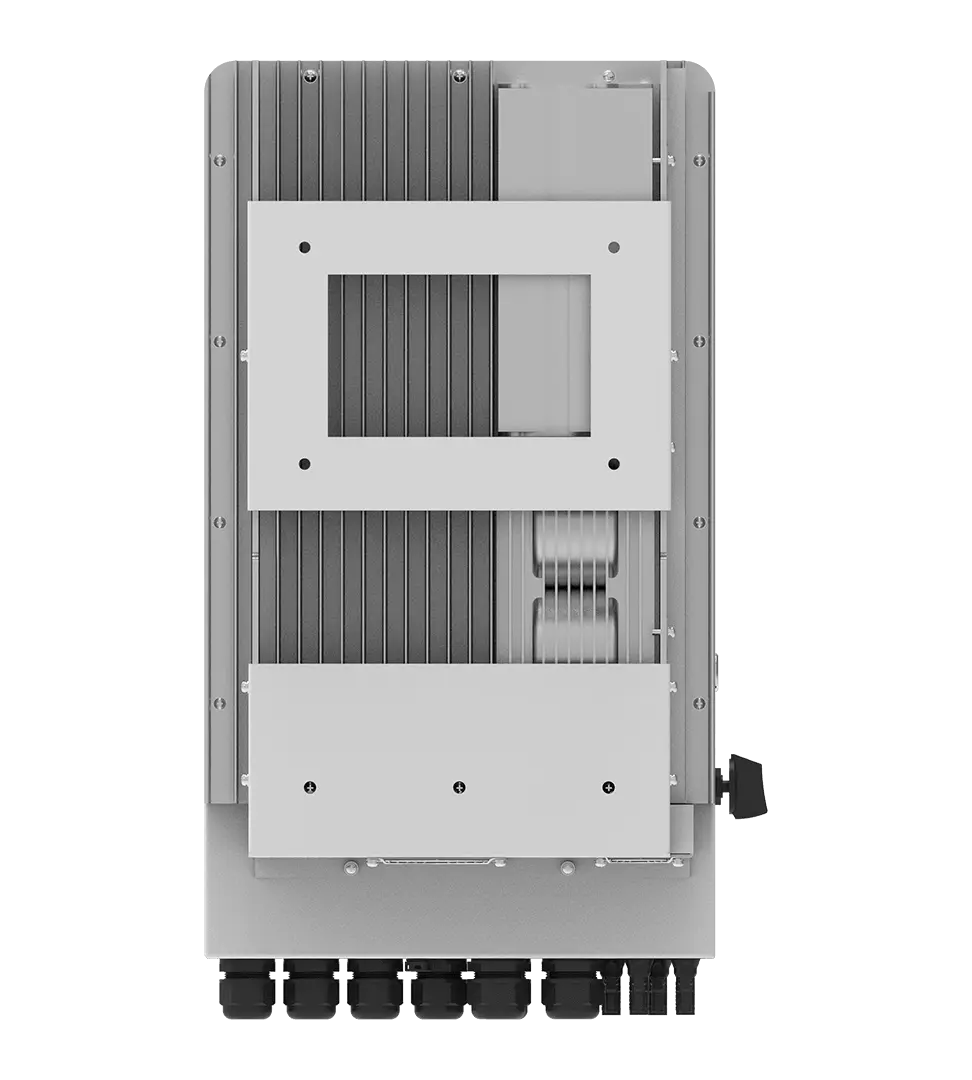

SUN-3.6/5/6/7/7.6/8K-SG05 LP1-EU | Hybrid Inverter Single Phase | 8KW| 2 MPPT | Low Voltage (48V) Battery
Higher yields / Safe & Reliable / Smart / User-friendly
SUN 3.6/8K-SG05，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/8K-SG05. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Technical Specifications
| Model | SUN-3.6K-SG05 LP1-EU | SUN-5K-SG05 LP1-EU | SUN-6K-SG05 LP1-EU | SUN-7K-SG05 LP1-EU | SUN-7.6K-SG05 LP1-EU | SUN-8K-SG05 LP1-EU |
|---|---|---|---|---|---|---|
| Battery Input Data | ||||||
| Battery Type | Lead-acid or Lithium-ion | |||||
| Battery Voltage Range (V) | 40-60 | |||||
| Max. Charging Current (A) | 90 | 120 | 135 | 175 | 190 | 190 |
| Max. Discharging Current (A) | 90 | 120 | 135 | 175 | 190 | 190 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
| Number of Battery Input | 1 | |||||
| PV String Input Data | ||||||
| Max. PV Access Power (W) | 7200 | 10000 | 12000 | 14000 | 15200 | 16000 |
| Max. PV Input Power (W) | 5760 | 8000 | 9600 | 11200 | 12160 | 12800 |
| Max. PV Input Voltage (V) | 500 | |||||
| Start-up Voltage (V) | 125 | |||||
| MPPT Voltage Range (V) | 150-425 | |||||
| Rated PV Input Voltage (V) | 370 | |||||
| Max. Operating PV Input Current (A) | 18+18 | 26+26 | ||||
| Max. Input Short-Circuit Current (A) | 27+27 | 34+34 | ||||
| No. of MPP Trackers/No. of Strings MPP Tracker | 2/1+1 | 2/2+2 | ||||
| AC Input/Output Data | ||||||
| Rated AC Input/Output Active Power (W) | 3600 | 5000 | 6000 | 7000 | 7600 | 8000 |
| Max. AC Input/Output Apparent Power (VA) | 3960 | 5500 | 6600 | 7700 | 8360 | 8800 |
| Rated AC Input/Output Current (A) | 16.4/15.7 | 22.8/21.8 | 27.3/26.1 | 31.9/30.5 | 34.6/33.1 | 36.4/34.8 |
| Max. AC Input/Output Current (A) | 18/17.3 | 25/24 | 30/28.7 | 35/33.5 | 38/36.4 | 40/38.3 |
| Max. Continuous AC Passthrough (grid to load) (A) | 35 | 40 | 50 | |||
| Peak Power (off-grid) (W) | 2 times of rated power, 10s | |||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||
| Rated Input/Output Voltage/Range (V) | 220/230, 0.85 Un-1.1 Un | |||||
| Rated Input/Output Grid Frequency/Range (Hz) | 50/45-55, 60/55-65 | |||||
| Grid Connection Form | L+N+PE | |||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||
| DC Injection Current | <0.5% In | |||||
| Efficiency | ||||||
| Max. Efficiency | 97.6% | |||||
| Euro Efficiency | 96.5% | |||||
| MPPT Efficiency | >99% | |||||
| Equipment Protection | ||||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | |||||
| Surge Protection Level | TYPE II(DC), TYPE II (AC) | |||||
| Interface | ||||||
| Communication Interface | RS485/RS232/CAN | |||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||
| General Data | ||||||
| Operating Temperature Range (°C) | -40 to +60°C, >45°C Derating | |||||
| Permissible Ambient Humidity | 0-100% | |||||
| Permissible Altitude | 2000m | |||||
| Noise (dB) | <30 | |||||
| Ingress Protection(IP) Rating | IP 65 | |||||
| Inverter Topology | Non-Isolated | |||||
| Over Voltage Category | OVC II(DC), OVC III(AC) | |||||
| Cabinet Size (WxHxD mm) | 366×589.5×237 (Excluding Connectors and Brackets) | |||||
| Weight (kg) | 26.8 | |||||
| Type of Cooling | Intelligent Air Cooling | |||||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |||||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
